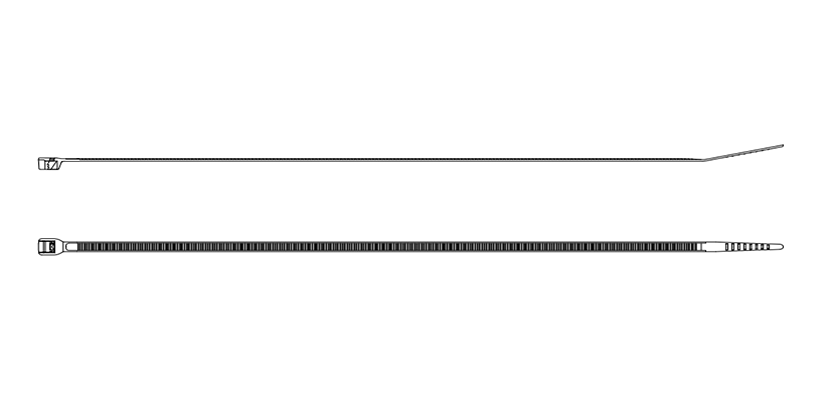

9mm Self-locking Nylon Cable Tie

Short Description:

Product Oveiview

Wide range of sizes are used for bundling and securing cables, pipes and hoses. Help to keep the cable tidy&clean.
Made of 100% good quality plastic that can be recycled well.
Internal serrated straps for more stable strapping.
Simple to operate, either manually or with machining tools
Curved cable ties allow for easy insertion.

Product Detail

Product Tags

Product application:

These versatile cable ties can be used in countless applications, for just about any industry. They are abundant at nearly all summer festivals and events. By grouping cables together and holding them tight, they help organize wiring systems and ease the burden of work. They are widely popular in electrical installation works. Other fields of application include telecommunications for example holding networking cables in place, transportation for fastening luggage, and speaker wires. They also have many unique applications for example with fireworks, they are used to secure the fuses together before blastoff! They are also commonly used in many homes for example for harnessing Christmas lights and other home electronics.

Basic Data

Material: Polyamide 6.6 (PA66)

Flammability: UL94 V2

Properties: Acid resistance, corrosion resistance, good insulation, not easy to age, strong endurance.

product category:Internal tooth tie

Is it reuasable: no

Installation temperature: -10℃~85℃

Working Temperature: -30℃~85℃

Color: The standard color is natural(white) color, which is suitable for indoor usage;

The black color cable tie added the carbon black and UV agent, which is available for outdoor usage.

SPECIFICATION

Item No.	Width(mm)	Length		Thickness	Bundle Dia.(mm)	Standard Tensile Strength		SHIYUN# Tensile Strength
Item No.	Width(mm)	INCH	mm	mm	Bundle Dia.(mm)	LBS	KGS	LBS	KGS
SY1-1-90400	9	15 3/4″	400	1.75	4-105	175	80	200	90
SY1-1-90450		173/4″	450	1.8	8-118	175	80	200	90
SY1-1-90500		1911/16″	500	1.8	8-150	175	80	200	90
SY1-1-90550		211/16″	550	1.8	8-160	175	80	200	90
SY1-1-90600		235/8″	600	1.8	8-170	175	80	200	90
SY1-1-90650		259/16″	650	1.8	8-190	175	80	200	90
SY1-1-90700		27 1/2″	700	1.85	10-205	175	80	200	90
SY1-1-90750		29 9/16″	750	1.85	10-220	175	80	200	90
SY1-1-90800		31 1/2″	800	1.85	10-230	175	80	200	90
SY1-1-90920		36 1/4″	920	1.85	10-265	175	80	200	90
SY1-1-91020		40 1/6″	1020	1.85	10-295	175	80	200	90
SY1-1-91200		47 1/4″	1200	1.85	10-340	175	80	200	90
