Fir Tree Cable Tie 5.0×170

Short Description:

Application:  With its versatile fixing options, this product is ideal for use in various industries such as automotive, aerospace, white goods manufacturing and panel construction.


Product Detail

Product Tags

Description: Button style head sits on reverse of panel and allows tie to be secured forming a loop. Allows pipes or cable bundles to be fixed to a panel using a single hole.

Releasable until finally secured.

Min. Loop Tensile Strength: 22kg

Material Polyamide 6.6(PA66 HS)
Colour Black
Flammability UL94V-2
Operating Temperature -40℃ to 105℃



 Item No.  Max.Bundle DIA. Tensile Strength Hole Dia. Panel Thickness
mm  (mm) (mm) LBS KGS mm mm
SYE-9-50170 170 5 35 50 22 6.5~7.0 0.8~7.0

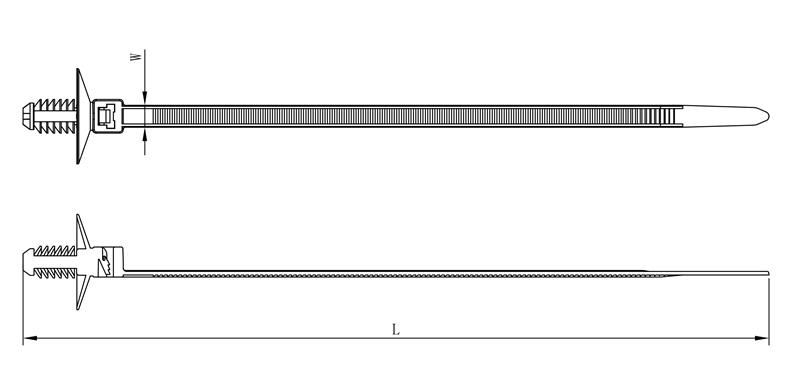

汽车50170简图
